A Guide To Drill Pipes

Defining Drill Pipes

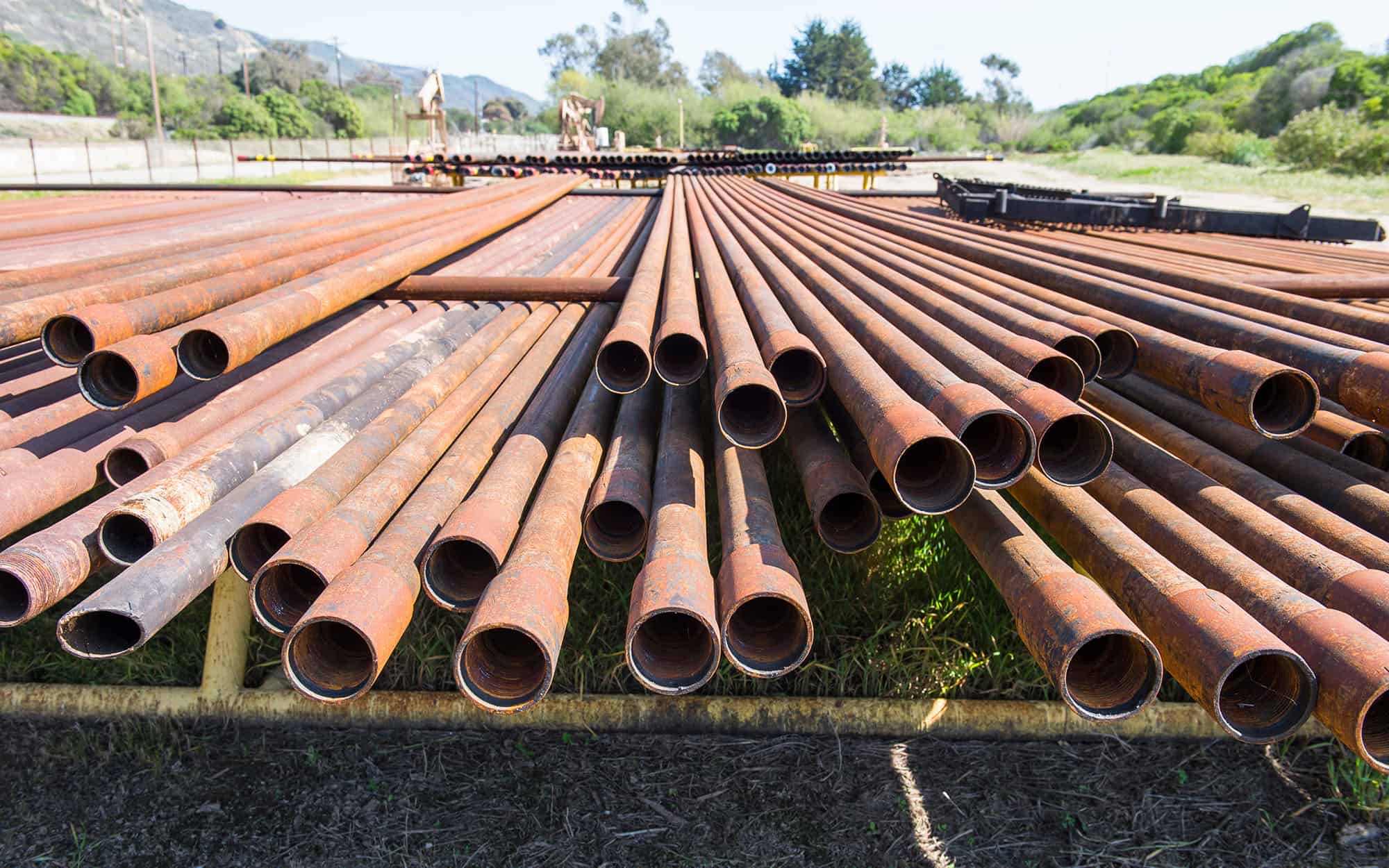

Drill pipes are tubular, hollow steel pipes used in drilling rigs. These pipes connect the surface equipment of a drilling rig to the drilling bit. They are essential for transmitting the drilling fluid to the drill bit and rotating it during drilling operations.

Key Components of Drill Pipes

Tube (Body): The main body of the drill pipe, made from high-strength steel.
Tool Joint: Heavy-duty connectors welded to both ends of the tube. The tool joints have a pin and box configuration that allows the pipes to be screwed together.
Thread Protectors: Used to protect the threads of the tool joints during transport and handling.

4 Reasons Drill Pipes Are Important

Transmission of Drilling Fluid: Drill pipes allow the drilling fluid to be pumped downhole to cool the drill bit, remove cuttings, and maintain wellbore stability.
Rotational Power: They transmit rotational power from the drilling rig to the drill bit, enabling the bit to cut through various types of geological formations.
Well Depth: Withstanding the extreme conditions of deep well drilling is another key responsibility, allowing for the exploration of resources located several miles beneath the earth’s surface.
Flexibility and Strength: Modern drill pipes provide the flexibility needed to handle directional drilling, where the wellbore is intentionally deviated from the vertical.

Types of Drilling Pipes

Drill pipes come in various types, each designed for specific drilling conditions and requirements. The primary types of drill pipes include:

Standard Drill Pipes (API Grade)

Characteristics: Standard drill pipes are manufactured according to the American Petroleum Institute (API) specifications. They are typically made from high-strength steel and are available in various grades, such as E-75, X-95, G-105, and S-135. Each grade indicates the pipe’s minimum yield strength in ksi (kilo-pound per square inch).

Applications:

Used in conventional drilling operations for oil and gas exploration.
Suitable for drilling in relatively stable geological formations.

Advantages:

Widely available and cost-effective.
Standardized specifications ensure compatibility with various drilling rigs and components.
Reliable performance in conventional drilling conditions.

Heavy-Weight Drill Pipes (HWDP)

Characteristics: Heavy-weight drill pipes (HWDP) are thicker and stronger than standard drill pipes. They provide a gradual transition between the drill collar and the standard drill pipe, helping reduce stress concentration and fatigue in the drill string.

Applications:

Used in directional drilling to prevent buckling.
Ideal for deep wells where higher loads and torque are encountered.

Advantages:

Provides added strength and durability.
Reduces stress concentration and fatigue in the drill string.
Enhances the overall performance and longevity of the drill string.

Sour Service Drill Pipes

Characteristics: Sour service drill pipes are designed for use in environments containing hydrogen sulfide (H₂S), a highly corrosive and toxic gas. They are resistant to sulfide stress cracking (SSC) and other forms of corrosion associated with sour environments.

Applications:

Used in drilling operations in sour gas fields where H₂S is present.
Essential for ensuring safety and preventing catastrophic failures in sour environments.

Advantages:

High resistance to sulfide stress cracking and corrosion.
Enhances safety in hazardous drilling conditions.
Ensures the longevity and reliability of the drill string in sour environments.

Corrosion Resistant Alloy (CRA) Drill Pipes

Characteristics: CRA drill pipes are made from high-alloy materials, such as stainless steel or nickel alloys, offering exceptional corrosion resistance. These pipes are designed for use in highly corrosive environments where standard steel pipes would fail.

Applications:

Used in offshore drilling and highly corrosive environments.
Ideal for drilling in wells with high levels of CO₂, H₂S, and chlorides.

Advantages:

Superior corrosion resistance compared to standard steel pipes.
Long-lasting and reliable performance in harsh environments.
Reduces maintenance costs and extends the life of the drill string.

High-Torque Drilling Pipe

Characteristics: High-torque drill pipes are designed to handle the increased torque requirements of modern drilling operations, especially in directional and extended-reach drilling (ERD). These pipes feature enhanced tool joint designs and higher-grade materials to withstand greater rotational forces.

Applications:

Used in directional and extended-reach drilling operations.
Suitable for drilling in complex geological formations requiring high torque.

Advantages:

Handles higher torque loads without compromising strength.
Improves drilling efficiency and performance in challenging conditions.
Enhances the ability to drill longer and more complex well paths.

Aluminum Drill Pipes

Characteristics: Aluminum drill pipes are significantly lighter than steel alternatives, reducing the overall weight of the drill string. They are made from high-strength aluminum alloys and are used in specific drilling applications where weight reduction is crucial.

Applications:

Used in ultra-deepwater drilling where weight reduction is essential.
Suitable for drilling in areas with limited load-bearing capacity.

Advantages:

Lightweight and easy to handle.
Reduces the load on the drilling rig and associated equipment.
Enhances mobility and efficiency in specific drilling scenarios.

Discover durable and reliable pipe solutions from SPP, available at half the price!

Our Pipe and Tube Supply

5 Steps for Choosing the Right Drill Pipe for Your Project

Selecting the appropriate drill pipe for your project involves considering several factors. Before you get started, check out these key considerations:

Drilling Environment: Assess the drilling environment’s corrosiveness, temperature, and pressure. Consider sour service or CRA drill pipes for sour or highly corrosive environments.
Well Depth and Direction: To handle the increased stress and torque, heavy-weight and high-torque drill pipes may be necessary for deep wells or directional drilling.
Load-Bearing Capacity: If weight reduction is crucial, such as in ultra-deepwater drilling, aluminum drill pipes may be the best choice.
Compatibility: Ensure the selected drill pipes are compatible with your drilling rig and other components. Standard API-grade pipes offer broad compatibility.
Budget: Consider the cost implications of different drill pipe options. While high-grade and specialty pipes may offer superior performance, they also come at a higher cost.

Source Drill Pipe From SPP Today

SPP is your provider for unmatched drill pipe quality and reliability. We offer a wide range of drill pipes, from new to used, ensuring you find the perfect fit for your drilling needs. Set your project up for success with our team today!
