Culvert Design Tips for Effective Stormwater Management

Start with the Flow: How to Size a Culvert for Stormwater

Every culvert design begins with one question: How much water will the site see at peak flow? Getting the answer wrong by even a small margin can lead to overtopping, structural damage, or downstream flooding. Use these steps when calculating size:

Determine the design storm
Measure the drainage area
Compute runoff with a method that fits the basin
Check tailwater conditions

When the numbers are in, match the required discharge to pipe diameter tables for your chosen material. If the suggested pipe seems smaller than local practice, upsize by the nearest standard increment for peace of mind; steel pipes are far cheaper than a washed‑out road.

Material Matters: Choosing the Best Pipes for Stormwater Culverts

Not every pipe is built to fight rust, abrasion, and heavy wheel loads. Selecting the right material saves years of maintenance headaches.

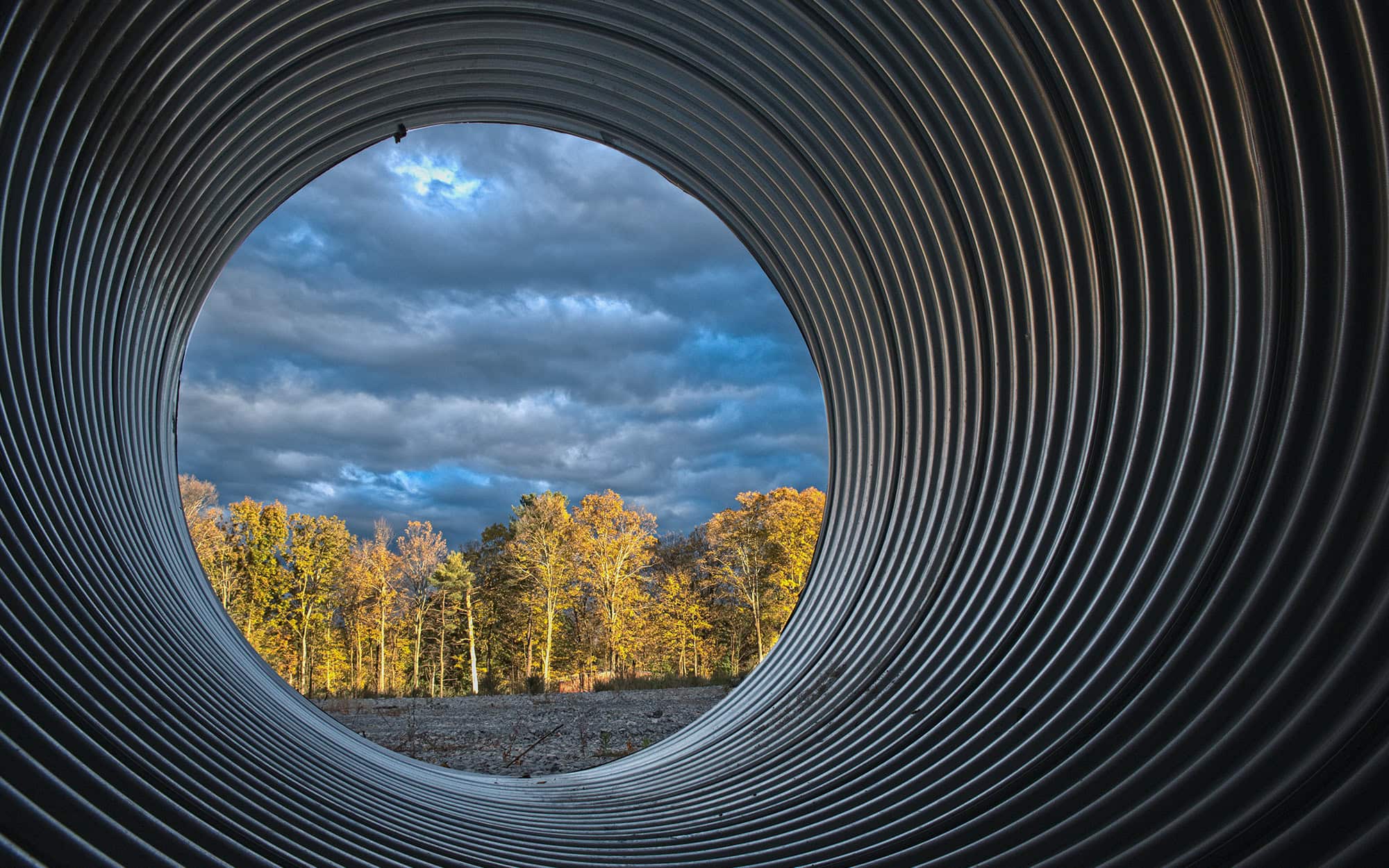

Corrugated Steel Pipes (CSP)
Why builders pick it: High strength‑to‑weight ratio, long spans without extra structure, and recyclability. Galvanized or polymer‑coated options extend life to 50 + years in moderate soils.
Best fit: Road crossings, farm lanes, railway beds where live loads are high.

Reinforced Concrete Pipes (RCP)
Why builders pick it: Exceptional durability, resistant to fire and ultraviolet rays. The rigid wall means less reliance on backfill quality.
Best fit: Urban streets, deep covers, or acidic soils where steel may corrode faster.

High‑Density Polyethylene (HDPE) Pipes
Why builders pick it: Lightweight for quick installation, flexible joints handle slight settlements.
Best fit: Low traffic farm drives or irrigation crossings where live loads are lighter.

When cost, load rating, and service life are stacked side‑by‑side, galvanized or polymer‑coated steel pipes often deliver the best total value for public works, which is one reason we stock thousands of feet ready to ship nationwide.

Get the Angle Right: How Culvert Slope Affects Drainage

Slope sets the culvert’s self‑cleaning speed. Too flat and sediment settles, clogging the barrel; too steep and outlet velocities scour the channel.

Match natural grade when possible. Align the pipe with the average channel slope to blend hydraulics and minimize abrupt drops.
Mind the minimum. For most corrugated steel pipes, 0.5 % is the rule‑of‑thumb minimum slope for reliable self‑cleansing.
Control excessive velocity. If the natural drop exceeds 6 %, add an energy dissipation structure such as a rock chute, stilling basin, or flared end section.

Remember, culvert design is about harmony with the site: the pipe should move water, not re‑engineer the whole valley.

Inlet and Outlet Treatments That Protect Your Investment

A pipe that fits the flow still needs the right entrances and exits to live a long life.

Headwalls and Wingwalls: These concrete or steel structures anchor the pipe, prevent washouts, and guide water smoothly in and out. Wingwalls also reduce embankment erosion by keeping flow aligned.
Flared End Sections: Flared ends transition water into the barrel with less turbulence, improving capacity by up to 25 %. They double as debris deflectors when placed upstream.
Aprons and Toe Walls: A short concrete apron at the outlet, combined with a buried toe wall, stops undercutting, the silent killer of many culverts that otherwise looked perfect from above.
Riprap Pads: Armor the channel bed and banks with properly sized rock to absorb outlet velocity. Select stone at least 1.5 times the expected maximum particle size displaced by the flow.

Implementing these details may add a day to installation, but can save decades of repairs.

The Top Culvert Design Mistakes and How to Avoid Them

Neglecting a few fundamentals leaves even well‑sized pipes doomed to fail. Watch out for these frequent missteps:

Mistake	Why It Happens	How to Fix It
Undersized pipes	Budget pressure or outdated rainfall data	Confirm design storm intensity with the latest NOAA Atlas 14 tables and upsize conservatively
Poor compaction around the pipe	Rushing backfill or using wet spoil	Compact lifts in 6-inch layers with proper moisture content, use granular backfill where possible
Ignoring inlet control	Belief that bigger diameter solves everything	Add headwalls, trash racks, or bevels to manage debris and flow pattern
No outlet protection	Overlooking velocity at discharge	Install riprap, energy dissipators, or stilling basins to stop scour
Misaligned slope	Trying to shorten pipe length	Follow channel grade, if grade break is unavoidable then install drop structures

Avoid these pitfalls, and culvert design becomes far less of a gamble.

Button Get My Quote

Choose the right pipe with Steel Pipe Pros. Discover how you can prevent costly road closures and property damage when you get a quote from us.

Erosion Control: Designing Culverts That Guard the Landscape

Unchecked scour at a culvert’s exit can carve channels, undermine roads, and dump sediment downstream. Smart erosion control starts on the drawing board:

Step down energy gradually. Use stilling basins or rock chutes where steep grades are unavoidable.
Expand the outlet width. A short transition section widens flow, lowering velocity before it meets natural ground.
Install soil stabilization mats. In vegetated swales, turf reinforcement mats protect young roots until grass establishes.
Monitor after major storms. The first big rainfall is a truth‑teller; inspect for early signs of erosion and fix promptly.

A small investment in erosion protection extends the life of the structure and preserves the surrounding ecosystem, which is a win for budgets and the environment.

Designing for Regional Storm Patterns in Illinois, Louisiana, Arkansas, and Missouri

Stormwater threats vary from the Midwest to the Gulf Coast, so culvert capacity and protection details should reflect each state’s dominant storm type:

Illinois: Short spring cloudbursts can deliver several inches in under an hour. Size pipes for high 30-minute rainfall and account for frozen ground runoff.
Louisiana: Tropical downpours and prolonged tailwater in bayous call for larger diameters and corrosion-resistant coatings.
Arkansas: Steep Ozark catchments create flashy flows. Specify steeper slopes and robust outlet riprap.
Missouri: Mississippi backwater and intense summer storms can quickly raise tailwater. Verify downstream water levels and short-duration rainfall.

Attending to these regional patterns helps culverts perform reliably year-round.

Build Smarter Culverts with Steel Pipe Pros

At Steel Pipe Pros, we stock thousands of feet of new surplus and reclaimed corrugated steel pipes ready to ship coast to coast. Our family‑owned team helps engineers, contractors, and landowners match the right diameter, coating, and corrugation profile to each project’s needs. Reach out today, and let’s keep your stormwater moving in the right direction.
